RS232 to RS485 Conversion
Connects an RS232 host interface to compatible RS485 equipment.
Loading DTECH products…
DT-9000
Passive RS232 to RS485 Converter
Compact passive conversion between RS232 hosts and half-duplex RS485 equipment.
Connect RS232 and RS485 equipment at 300 to 115.2 Kbps, with a source-specified RS485 distance of less than 1200 metres.

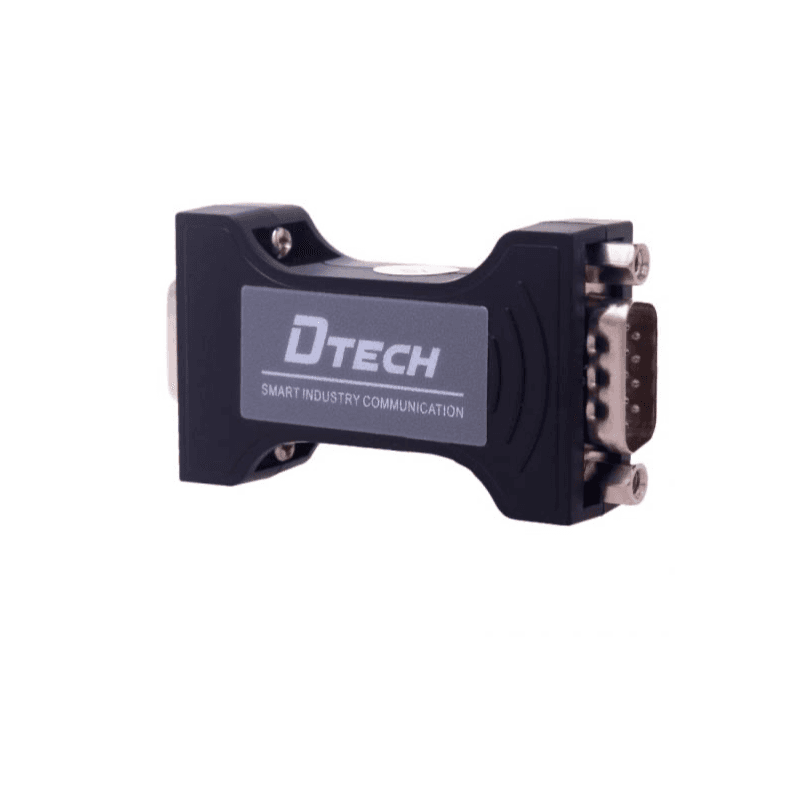

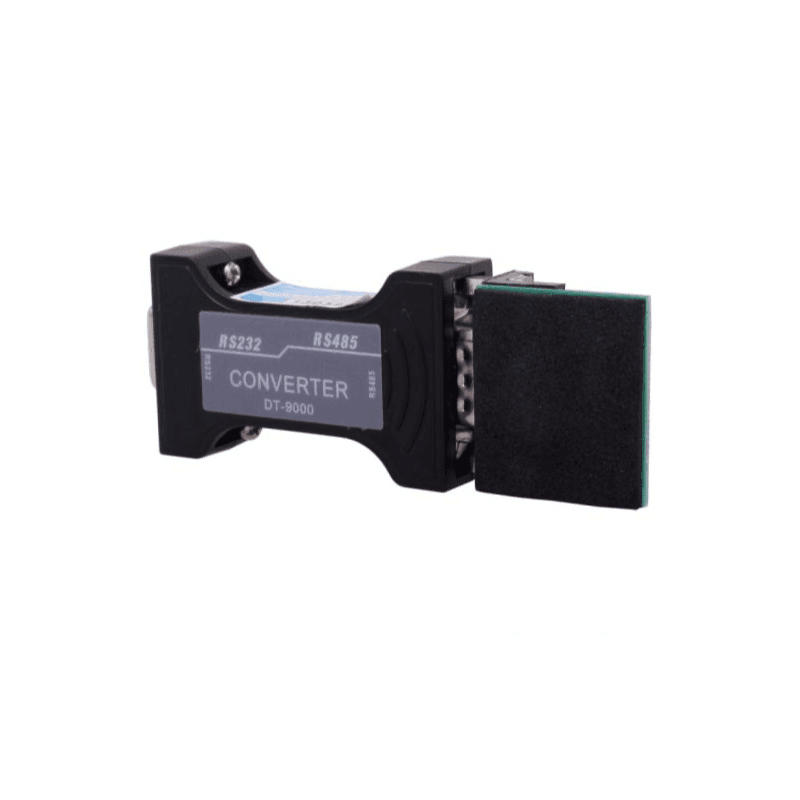

Hover to zoomDTECH DT-9000 passive RS232 to RS485 converter with terminal adapter on a pure white background
ConversionRS232 → RS485Passive interface converter
Baud Rate300–115200 bpsSource-specified range
Working ModeHalf duplexAsynchronous differential
RS485 Distance<1200 mRS232 side within 15 m
Humidity5%–95% RHSource environmental field
Product Overview
A practical path for bringing installed serial equipment into modern industrial data networks.
The DT-9000 is a passive interface converter for linking an RS232 host to RS485 serial equipment. The official legacy source lists compatibility with EIA/TIA RS-232C and RS485 interfaces.
It operates with asynchronous half-duplex differential transmission and supports 300 to 115200 bps. The source specifies less than 1200 metres on the RS485 side and within 15 metres on the RS232 side.
115.2 Kbpsmaximum source rate
Supports common industrial serial baud rates.
<1200 mRS485-side distance
Source-specified long-distance serial reach.
15 mRS232-side limit
Documented host-side transmission distance.
Half duplexworking mode
Asynchronous differential transmission.
Key Features
Core capabilities selected for reliable integration, flexible deployment and efficient maintenance.
EIA/TIA Interface Compatibility
The source lists compatibility with RS-232C and RS485 interface standards.
Wide Baud-Rate Range
Supports source-specified serial rates from 300 to 115200 bps.
Long-Distance RS485 Link
Supports less than 1200 metres on the RS485 side under the official source specification.
Half-Duplex Operation
Uses asynchronous half-duplex differential transmission for RS485 communication.
Compact Adapter Format
An in-line enclosure and terminal adapter support direct serial-equipment integration.
System / Network Architecture
See how this product fits into an industrial serial communication network.
RS232 hostComputer or serial controller
Serial data
Protected branches
RS485 equipmentHalf-duplex industrial serial link
Technical Specifications
Verified configuration details for engineering review and product selection.
Communication
- Model
- DT-9000
- Product type
- Passive RS232 to RS485 converter
- Interface compatibility
- RS-232C and RS485; EIA/TIA compatible
- Transmission rate
- 300–115200 bps
- Working mode
- Asynchronous half-duplex differential transmission
- RS485 transmission distance
- Less than 1200 m
- RS232 transmission distance
- Within 15 m
Environmental and Commercial
- Relative humidity
- 5% to 95%
- Warranty
- 1 year
Related Products
Explore complementary DTECH connectivity products for adjacent signal paths and network requirements.
Frequently Asked Questions
Verified answers for product selection and project planning.
Which interfaces does the DT-9000 connect?
The DT-9000 converts an RS232 host interface for connection to RS485 serial equipment.
What baud-rate range does the DT-9000 support?
The official legacy product page specifies communication from 300 to 115200 bps.
What working mode does the DT-9000 use?
It uses asynchronous half-duplex differential transmission.
How far can the DT-9000 transmit?
The source specifies less than 1200 metres on the RS485 side and within 15 metres on the RS232 side.
