SW1000 Series
Industrial Unmanaged Ethernet Switches
Rugged DIN-rail Ethernet switching for industrial edge networks and harsh environments.
Choose 5-port or 8-port Fast Ethernet and Gigabit models with redundant DC input, IP40 metal housing and fanless cooling.

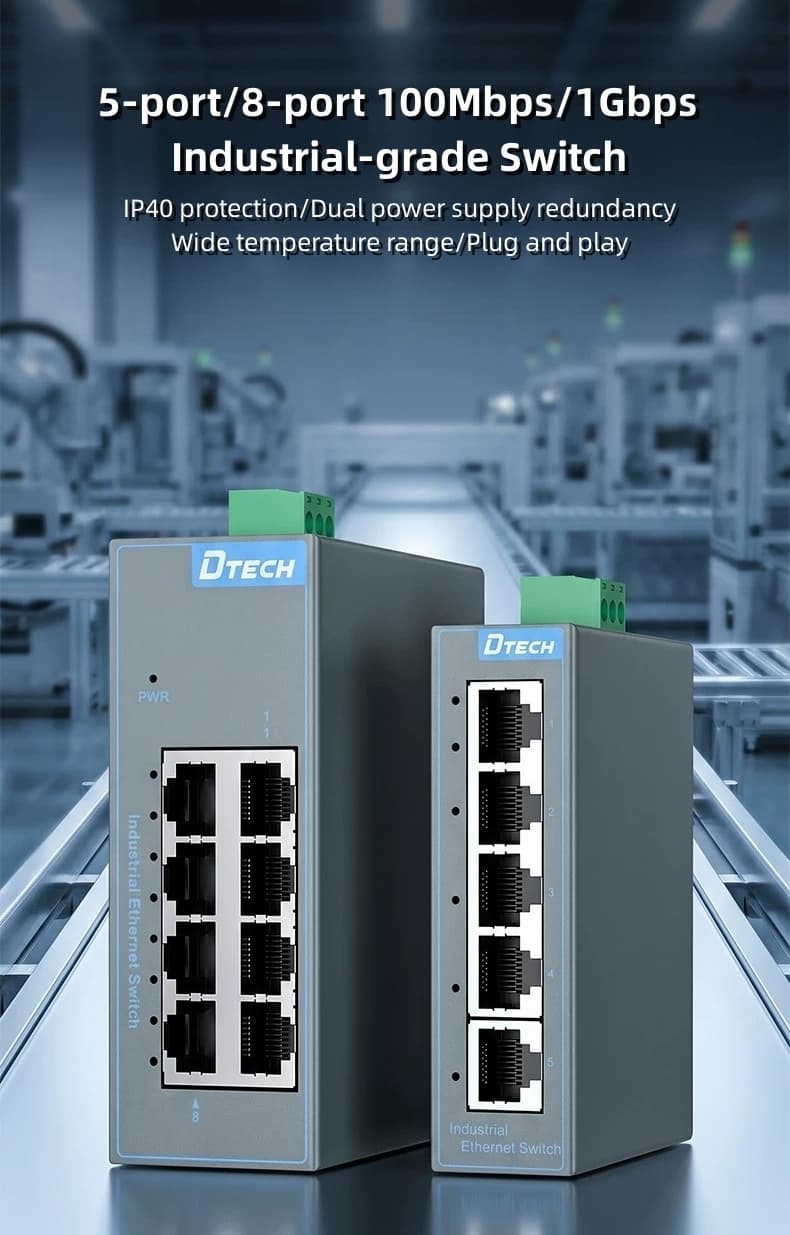

Hover to zoomDTECH SW1000 Series 5-port and 8-port industrial DIN-rail Ethernet switches
Ethernet Ports5 or 8 x RJ45Fast Ethernet / Gigabit
Power InputDual DC 12–52VReverse-polarity protection
Operating Temperature-30°C to 70°CIndustrial environment
MountingDIN 35 RailControl cabinet installation
ProtectionIP40 metal housingFanless cooling
Product Overview
A practical path for bringing installed serial equipment into modern industrial data networks.
The SW1000 Series is a family of industrial-grade unmanaged Ethernet switches for automation, outdoor monitoring, transportation and industrial edge access.
It includes 5-port and 8-port Fast Ethernet and Gigabit variants, with dual wide-voltage inputs, fanless cooling, IP40 protection and plug-and-play deployment.
5 / 8RJ45 ports
Fast Ethernet and Gigabit model options.
DC 12–52Vdual power input
Supports resilient industrial deployment.
-30°C to 70°Coperating range
Stable operation in industrial conditions.
IP40metal enclosure
Fanless passive cooling.
Key Features
Core capabilities selected for reliable integration, flexible deployment and efficient maintenance.
Redundant Power Input
Dual DC 12–52V input with reverse-polarity protection.

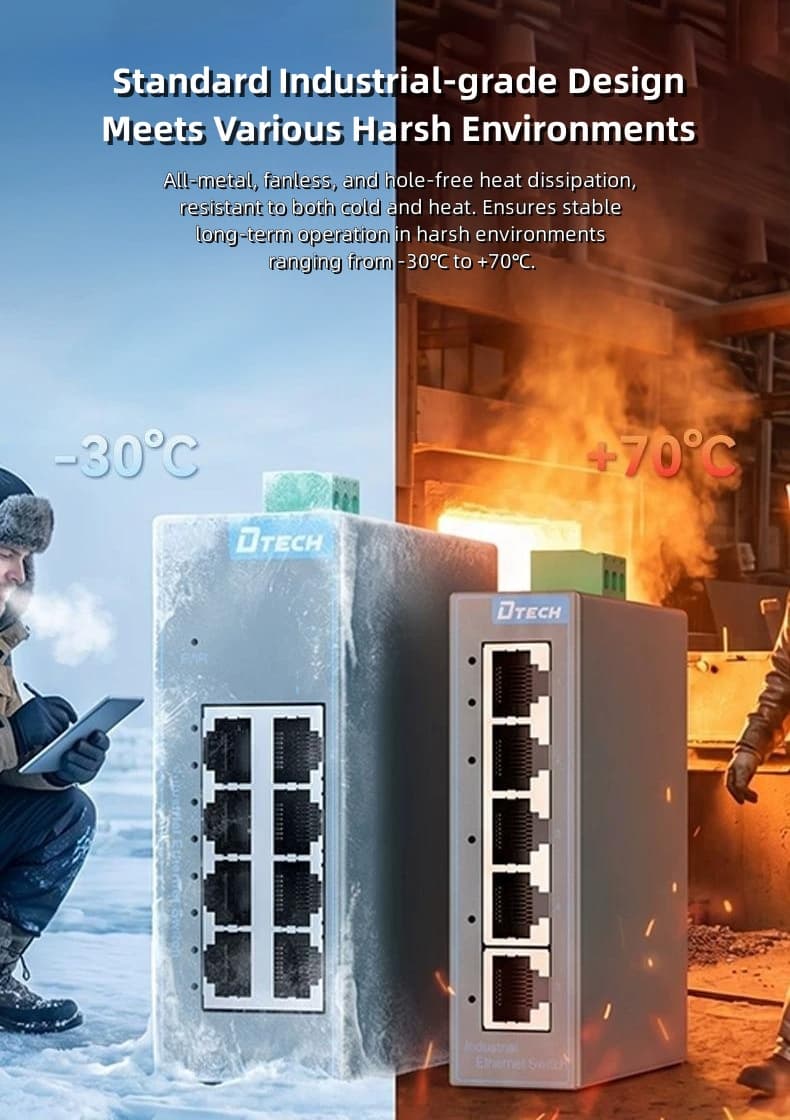

Industrial Temperature Range
Designed for operation from -30°C to 70°C.
Enhanced Protection
IP40 metal housing with specified ESD and surge protection.

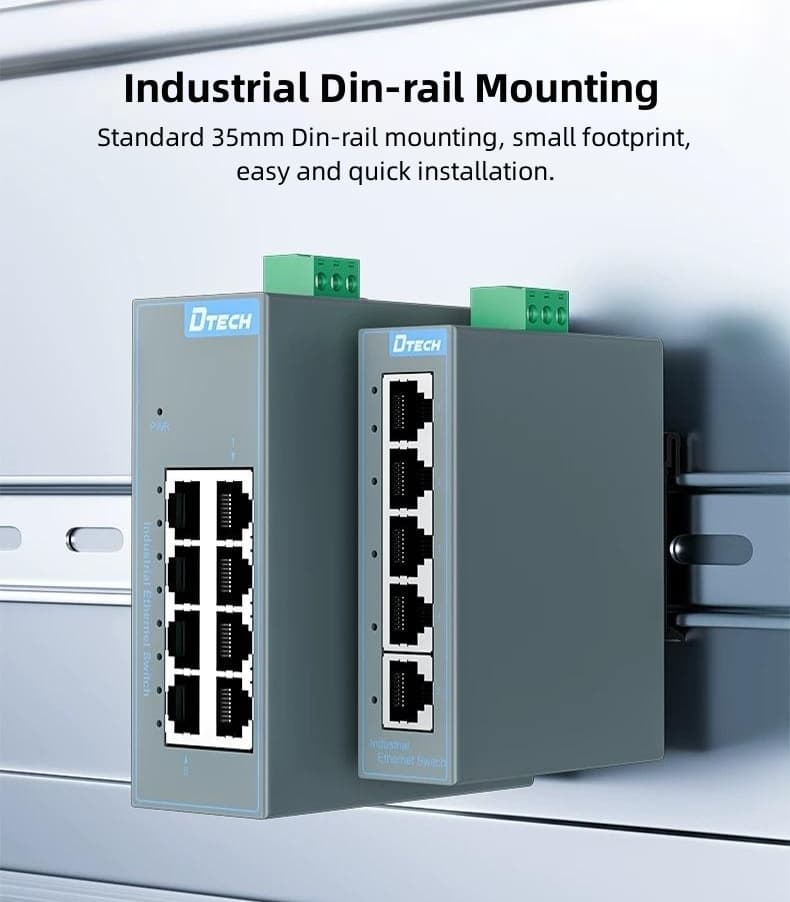

DIN-Rail Installation
Mounts on a standard DIN 35 rail for control cabinet deployment.
Plug-and-Play
Unmanaged design with full/half-duplex auto-negotiation and MDI/MDI-X.
Industrial Applications
Explore practical deployment scenarios for this DTECH industrial connectivity product.
Industrial Automation and Robotics
Converge PLC, machine-vision, HMI and robot Ethernet links at the production-line edge.
Energy and Utility Monitoring
Aggregate compatible monitoring devices in renewable-energy sites and outdoor power-distribution installations.
Rail Transit and Security Networks
Provide local Ethernet access for compatible signaling, monitoring and surveillance equipment.
Technical Specifications
Verified configuration details for engineering review and product selection.
Models and Interfaces
- Fast Ethernet models
- SW1000-5FT-BU-2D: 5 x 10/100 Mbps; SW1000-8FT-BU-2D: 8 x 10/100 Mbps
- Gigabit models
- SW1000-5GT-BU-2D: 5 x 10/100/1000 Mbps; SW1000-8GT-BU-2D: 8 x 10/100/1000 Mbps
- Standards
- IEEE 802.3, IEEE 802.3u, IEEE 802.3ab (Gigabit), IEEE 802.3x
- Port mode
- Full/half duplex, auto-negotiation, MDI/MDI-X
Switching Performance
- Switching capacity
- 5-port Fast Ethernet: 1 Gbps; 8-port Fast Ethernet: 1.6 Gbps; 5-port Gigabit: 10 Gbps; 8-port Gigabit: 16 Gbps
- Packet forwarding rate
- 5-port models: 7.5 Mpps; 8-port models: 11.904 Mpps
- Buffer memory
- 5-port models: 1.2 Mbit; 8-port models: 2 Mbit
- MAC address table
- 4K entries
- Jumbo frame
- 9 Kbit
- Flow control
- IEEE 802.3x
Power and Mechanical
- Power input
- Dual DC 12–52V
- Power connector
- 3-pin 5.08 mm terminal; connect protective ground to the FG terminal
- Reverse-polarity protection
- Supported
- Mounting
- DIN 35 Rail
- Cooling
- Fanless natural cooling
- Ingress protection
- IP40
- Dimensions
- 5-port: 94 x 76 x 26 mm; 8-port: 110 x 91 x 40 mm
Environmental and Protection
- Operating temperature
- -30°C to 70°C
- Storage temperature
- -40°C to 80°C
- Working humidity
- 10%–90% RH, non-condensing
- ESD protection
- Contact: ±6 kV; Air: ±8 kV

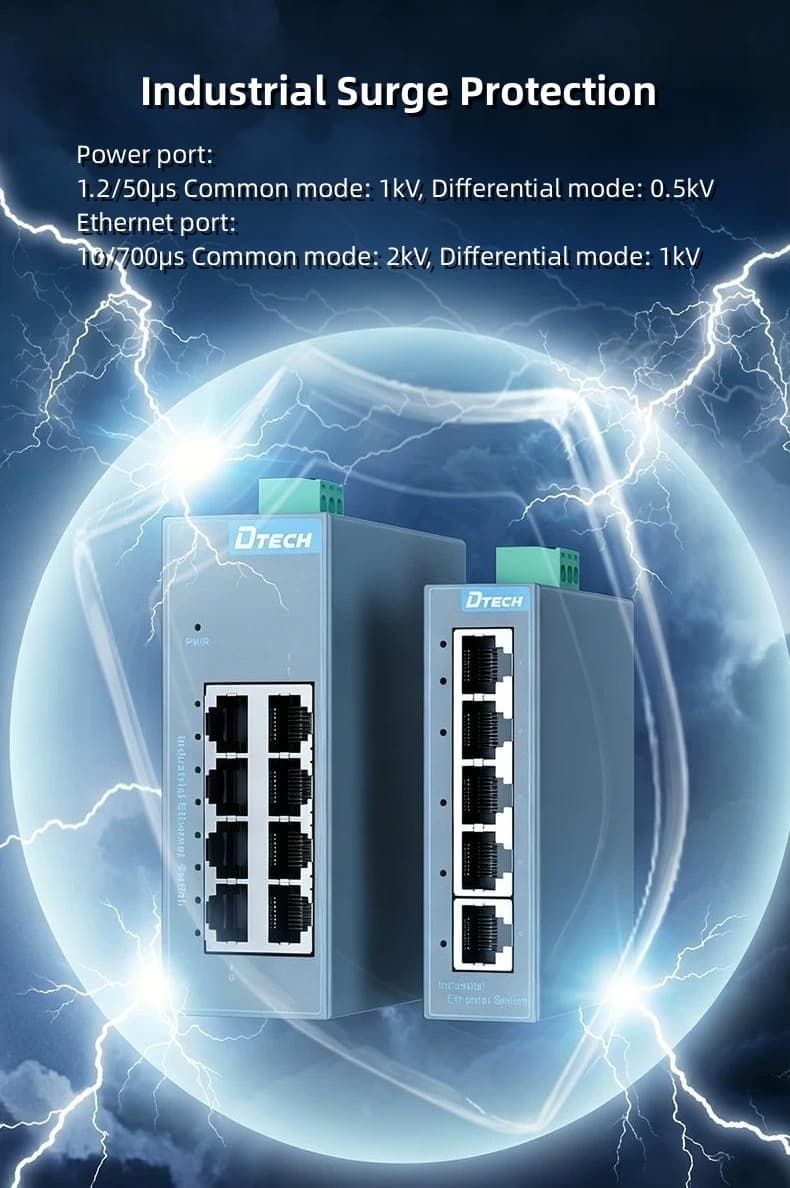

- Network surge protection
- Common mode: 2 kV; Differential mode: 1 kV
Product Model Comparison
Compare verified model differences before selecting a configuration.
| Specification | SW1000-5FT-BU-2D | SW1000-8FT-BU-2D | SW1000-5GT-BU-2D | SW1000-8GT-BU-2D |
|---|---|---|---|---|
| Ports | 5 | 8 | 5 | 8 |
| Ethernet speed | 10/100 Mbps | 10/100 Mbps | 10/100/1000 Mbps | 10/100/1000 Mbps |
| Power input | DC 12–52V | DC 12–52V | DC 12–52V | DC 12–52V |
| Operating temperature | -30°C to 70°C | -30°C to 70°C | -30°C to 70°C | -30°C to 70°C |
